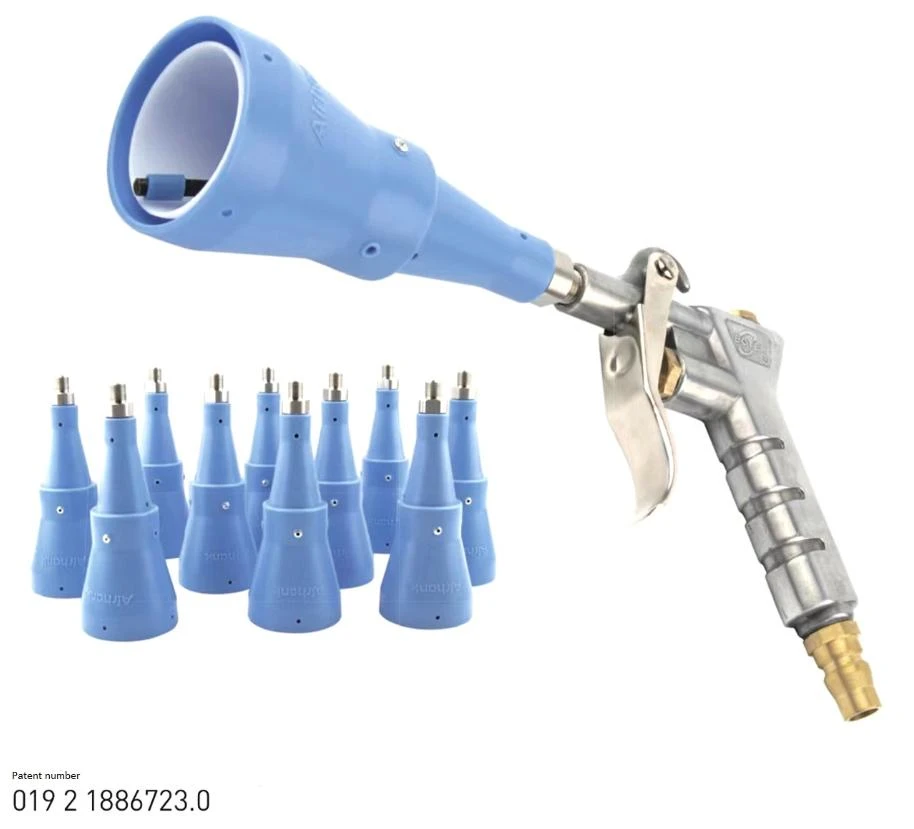

50mm Air Spray Gun Nozzle Air Compressor

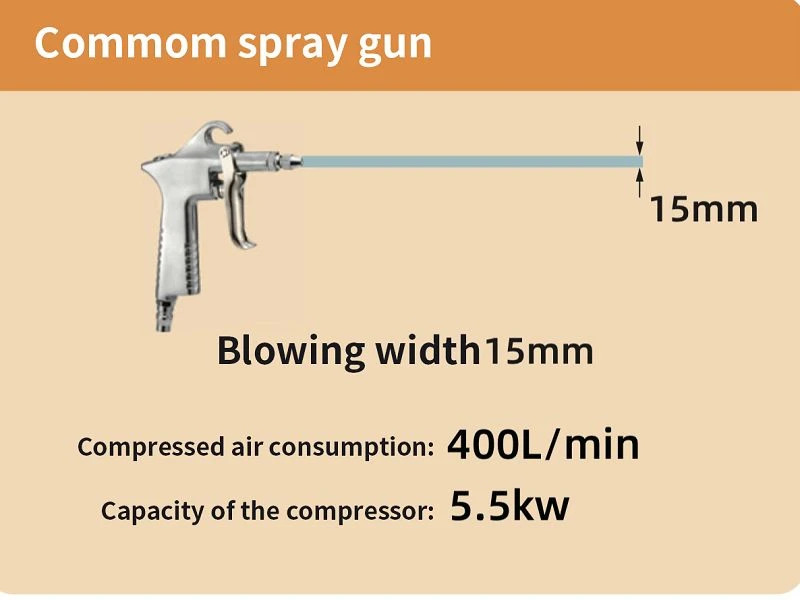

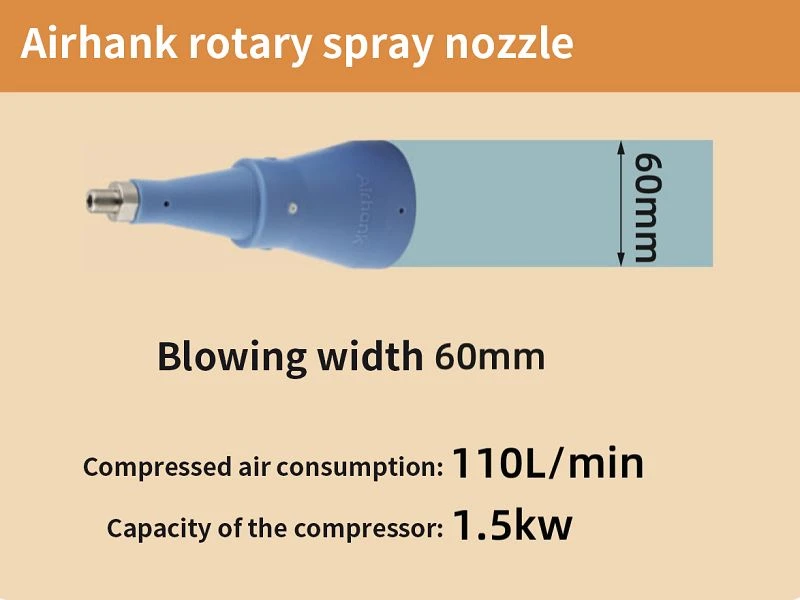

HANK independent research and development of the ARS-Series rotary nozzle can effectively replace the traditional spray gun, the traditional spray gun can only rely on air to promote the horizontal movement, can not reach the groove place, can not blow dry the water, high energy consumption, ARS-Series rotary nozzles can be repeated to generate the air impact, quickly remove the groove out of the water, 360-degree dead-end angle of the water removal, dust removal.

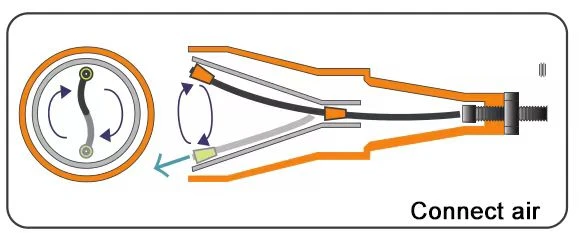

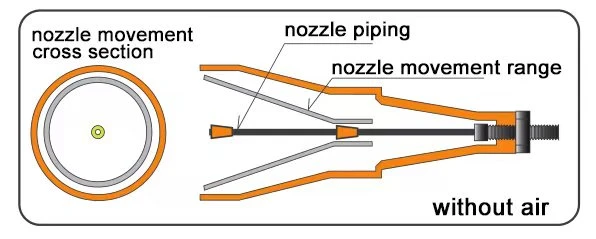

When the HANK rotating nozzle is connected to the air inlet,the pressurized hose begins to move the rotate along the inside wall of the conical wheel within the nozzle's range of motion.when your hand comes in contact with the jet opening of the airhank rotating nozzle, you will feel an intermittent shock wave of air.

The shock wave generated by the rotation of the tube produces an air impact at the same speed as the rotation of the tube.(ARS-Series,20 rotations/second or more)

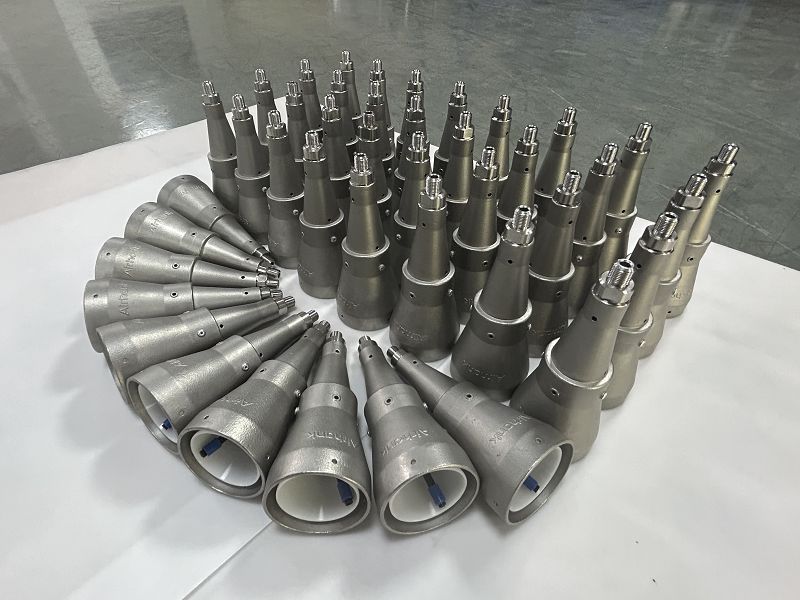

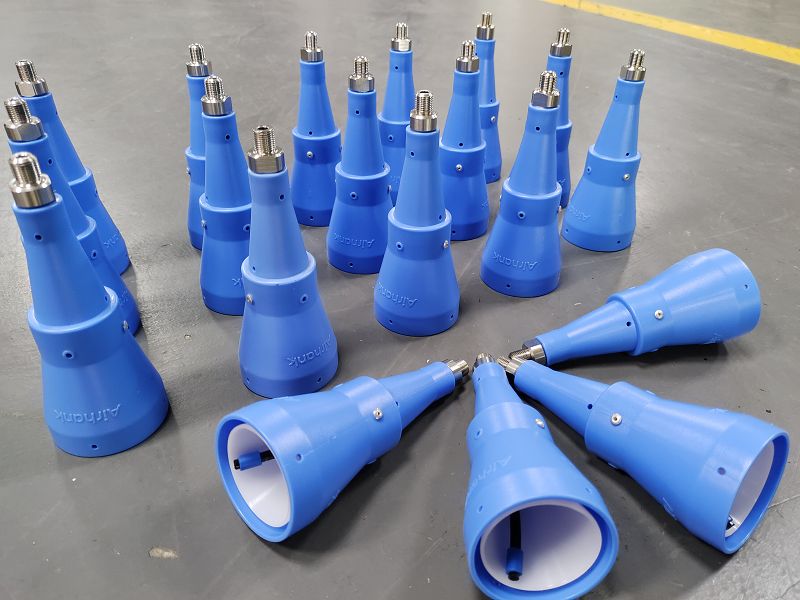

HANK ARS-Series available in 2 raw materials, plastic and stainless steel for choose.





Model	Airflow	Applicable gas	Pressure	Temperature	Weight	Gas usage
ARS	100-110NL/min	Air Inert gas	0.4--0.5Mpa	10-40℃	107g	100NL/min



ARS rotary nozzles are ideal for large areas or extensive water removal, saving energy and air.

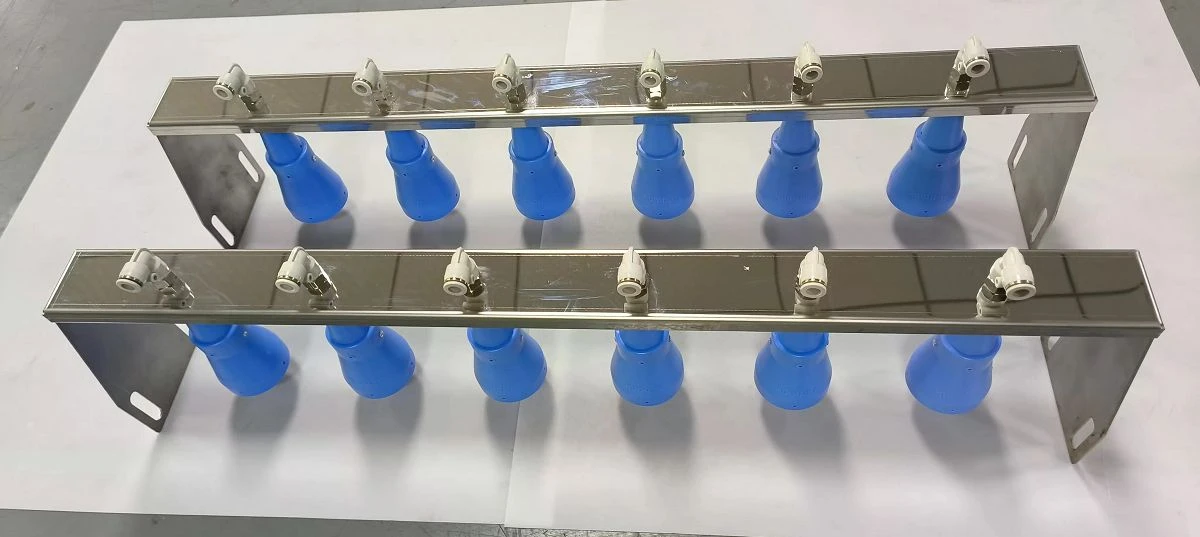

For use in production lines, ARS-Series can be used in parallel.





*Housing - Stainless steel/POM resin

*Cone wheel - POM resin

*Bearing-SUJ2(Steel)*Grease Closed Type

*Nozzle tube- Soft urethane

*Connection- BS (nickel plated)

*Nozzle diameter-50mm

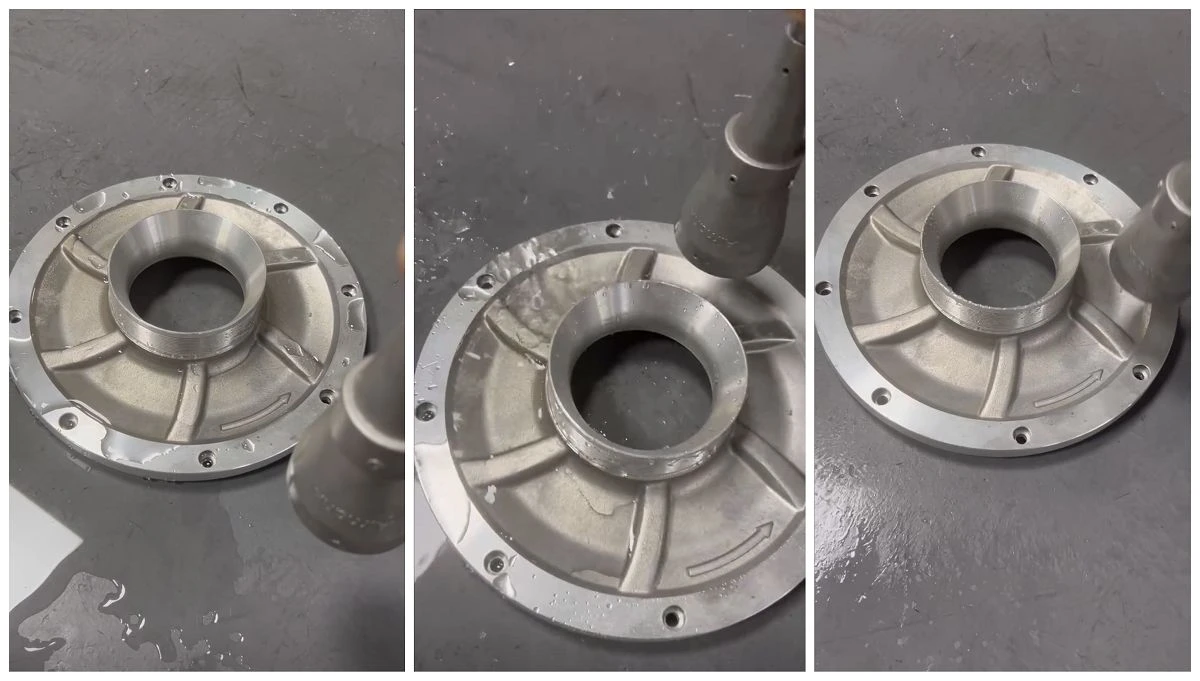

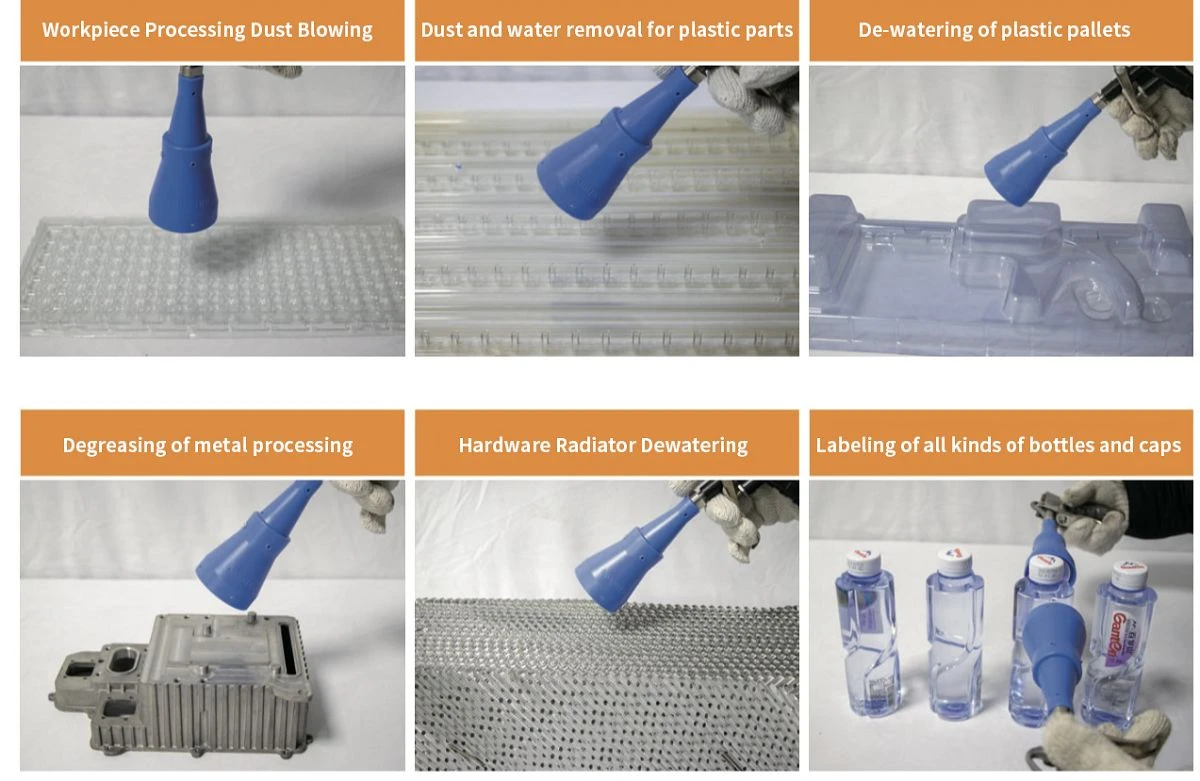

*Work piece Processing Dust Blowing

*Dust and water removal for plastic parts

*De-watering of plastic pallets

*De-greasing of metal processing

*Hardware Radiator De-watering

*Labeling of all kinds of bottles and caps







barrier-free isolation, paper printing paper blowing and post-press drying, the It can also be used in the rapid heating, defrosting and high temperature sterilization of food, medicine, dust removal, electrostatic dust removal.





Hank blower & air knife drying system
