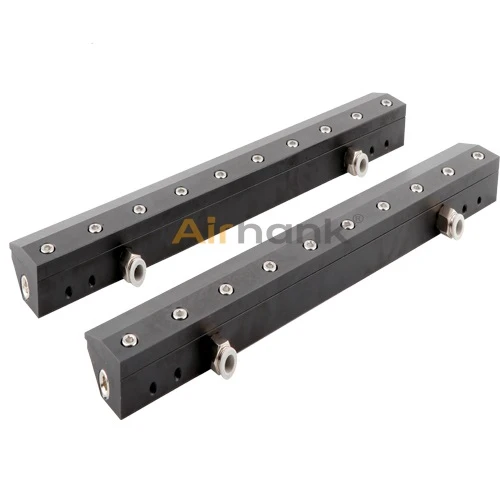

Air Compressor Pneumatic Air Knife

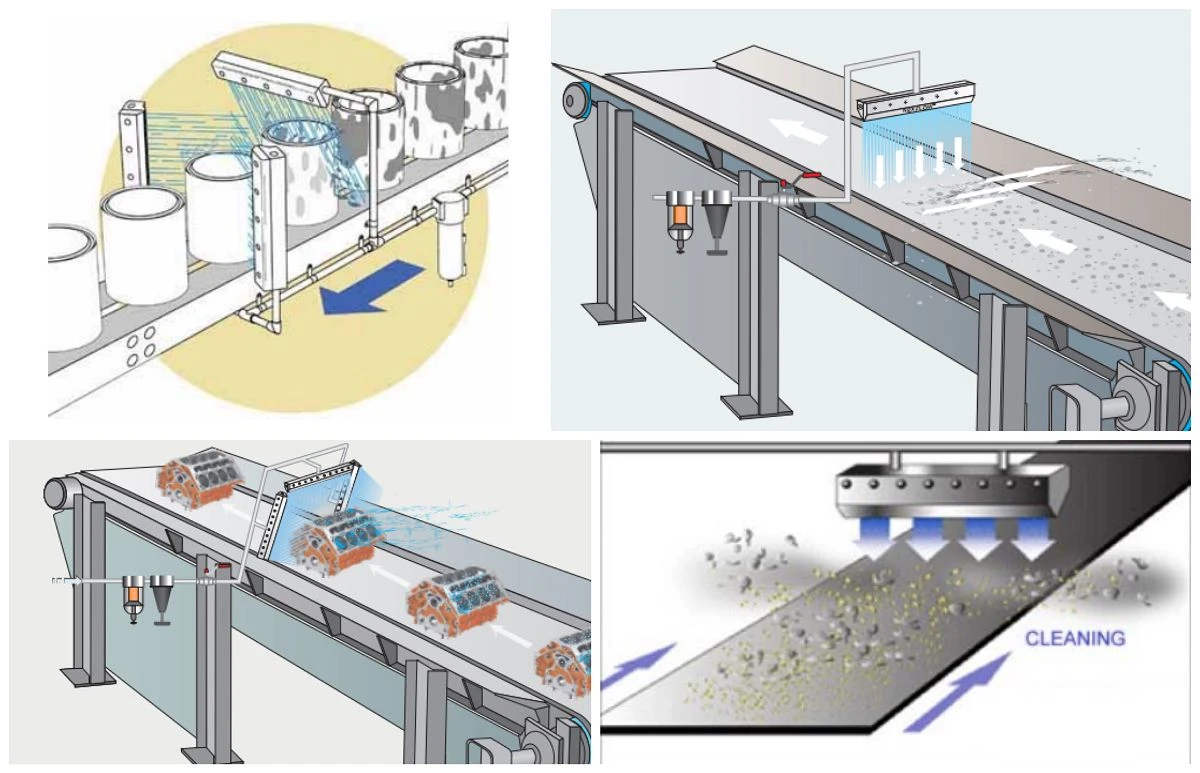

When the compressed air into the HANK Super pneumatic air Knife, through the principle of the Coanda effect and the air knife special structure, to one side of the airflow sheet high-speed blowing out, the primary air curtain deflection 90 ℃ will be diverted 25 times to 40 times, the formation of a thin side of the high-intensity, large airflow impact, applied to cleaning, drying, cooling, steel, aluminum alloys, beverage bottles, packaging irrigation and other bottles, such as the bottle surface of the de-watering, blowing off the surface of the products of the dust. residual liquid.





TA-600-S2/T2
Model	Length(mm)	Air inlet position	Air inlet number
TA series super air knife	600	S2 = 2 side	T2= 2pcs inlet



Main body: 6061 T6 high strength aluminium alloy

Outlet adjustable range: 0.05-0.1mm

Gasket seal: food-grade silicone

Max length: 1168mm

Max air speed: 400m/s

Heat resisting: 200℃

Pressure resisting: 10kgf/cm2

Weight(every 100mm): 200G

Outlet accuracy: ±2%

Surface treatment: black anode





TA type	Outlet length	Outlet width	Withstand	Heat resistant	Inlet direction	Number of inlet	Pressure and air flow required for various conditions
							Airflow magnification 20		Airflow magnification 30		Airflow magnification 40
	mm	mm	mpa	℃		1	kpa	m³/h	kpa	m³/h	kpa	m³/h
TA-100-S2/T1	100	0.05	1.0	200	side	1	4.0	0.36	6.0	0.49	8.0	0.58
TA-200-S2/T2	200				side	2		0.72		0.98		1.16
TA-300-S2/T2	300				side	2		1.08		1.47		2.32
TA-400-S2/T2	400				side	2		1.44		1.96		2.90
TA-500-S2/T2	500				side	2		1.80		2.45		3.48
TA-600-S2/T2	600				side	2		2.16		2.94		4.06
TA-700-S2/T2	700				side	2		2.52		3.43		4.64
TA-800-S2/T3	800				side	3		2.88		3.92		5.22

(*others size pls contact with us for customized*)



* Hank's air knives operate at low noise levels (70-80dB).

* Low air consumption, greatly saving compressed air, air knife air consumption is only 50% of the traditional blowing tube

* Air knife blowing air curtain for cold air, no temperature rise

* The air inlet can be arbitrarily selected at the side end or the backside

* Safe to use, no need for electricity, direct compressed air drive



Pneumatic air knife also known as air knives, air curtains, super pneumatic air knife, super air knife, air compressed air knife, are currently the most reliable and cost-effective blow-drying products in the world. They are widely used in many countries.

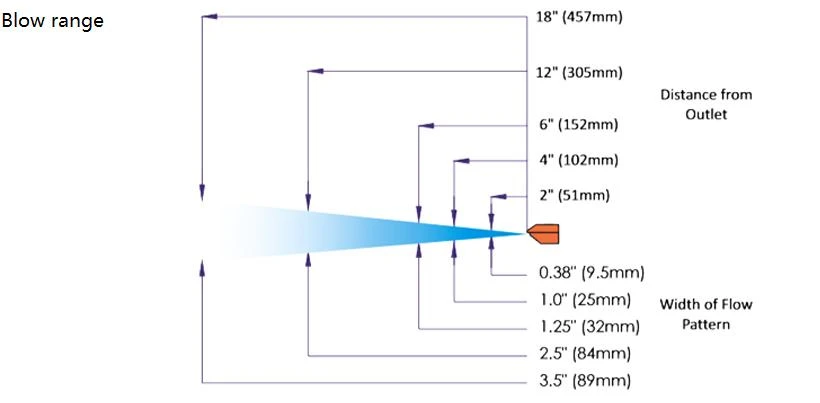

TA Series Pneumatic Air Knife Air Curtain Distance and Diffusion Range
