Double Pump Industrial Compressor Super Blower

Double Pump Industrial Compressor Super Blower

Newest high efficiency centrifugal blower HANK-200
3400m³/h compact body long working life
Dual 50Hz /60Hz frequency

Send Inquiry

Features

Hank air systems specializes in manufacturing industrial - grade centrifugal blowers, catering to a wide range of air,gas and air knife applications. Our compact belt-driven blowers ranging from 7.5 to 30 horsepower, deliver exceptional performance with airflow capacities from 1200m³/h - 3400m³/h, vacuum ratings up to 8''Hg, Design for 24/7 operation, Hank blowers feature seals,high quality bearing and PTFE shaft seals for reliable performance.whether it is drying,air handling,heating,cooling, or blowing-off applications,our energy-efficient blowers are trusted by industries worldwide.

Technical Parameter

Model	Motor	Power	Voltage	Max airflow	Frequeny	Pressure	Vacuum	inlet&out	Weight
Model	Motor	(KW)	(V)	(m³/h)	(Hz)	(mbar)	(mbar)	(mm)	KG
HANK70-5.5	IEC/NEMA	5.5(7.5HP)	380	1200	50	240	-220	102mm &76mm	91
HANK70-7.5	IEC/NEMA	7.5(10HP)	380	1470	50	260	-225	102mm &102mm	101
HANK-85-7.5	IEC/NEMA	7.5(10HP)	380	1700	50	180	-170	102mm &102mm	103
HANK100-11	IEC/NEMA	11(15HP)	380	1700	50	240	-220	102mm &102mm	140
HANK150-15	IEC/NEMA	15(20HP)	380	2100	50	240	-230	102mm &102mm	156
HANK150-18.5	IEC/NEMA	18.5(25HP)	380	2125	50	290	-270	102mm &102mm	185
HANK200-22	IEC/NEMA	22(30HP)	380	3400	50	240	-225	102mm &102mm	220

Ambient temperature -12℃-40℃

HANK centrifugal blower technical features

* 100% oil-free compression, clean and hygienic air
* Adopting NSK brand authorized bearings
* IP55 protection class, Class H insulation class (temperature resistance 155℃)
* 50Hz/60Hz wide frequency and wide pressure design.
* Pump body and impeller are made of high-strength ADC12 aluminum alloy die-casting..

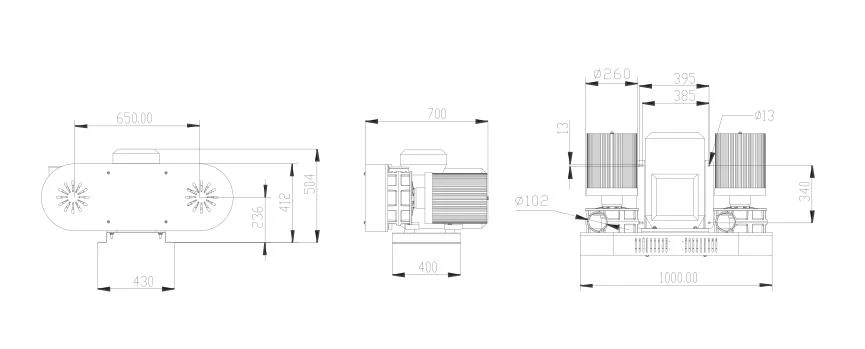

HANK-200 22KW installation diagram

215

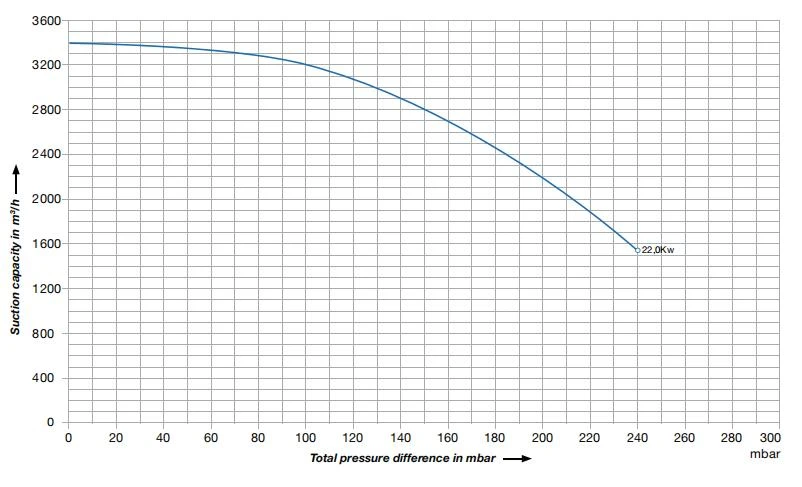

HANK-150 18.5KW performance curve

216

*Please confirm final installation demension with us due to product updates*

When using our blower, pls carefully check the installation space and conduct reasonable piping and wiring. for your convenience, Hank high speed centrifugal blower provide flexible air outlet location for your choose. Please indicate outlet location when ordering,below Hank drawing for reference.

Hank's product line covers air blower, centrifugal blower, air knife, blower accessories, air knife systems accessories,We will always be the most specialized supplier of air application and energy-saving drying technology to industry.

202

HANK high speed centrifugal blower export packaging

112003

FAQ

Q: Are you trading company or manufacturer?

A: We are professional manufacturer specialized in side channel blower,high speed centrifugal blower and air knife drying system. The company has always insisted on the integration of development, mold manufacturing, die-casting, precision machining, assembly and automated paint spraying.

Q: Could you provide information about your certifications?

A: Our certifications include CE, RoHs, and ISO9001.

Q: What modes of payment do you accept?

A: We accept T/T, Western Union, PayPal, ensuring flexibility for our clients.

Q: Can you do OEM and ODM?

A: Yes, OEM and ODM are both acceptable.
