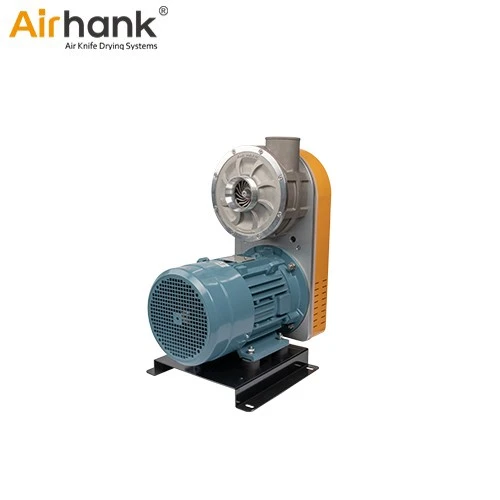

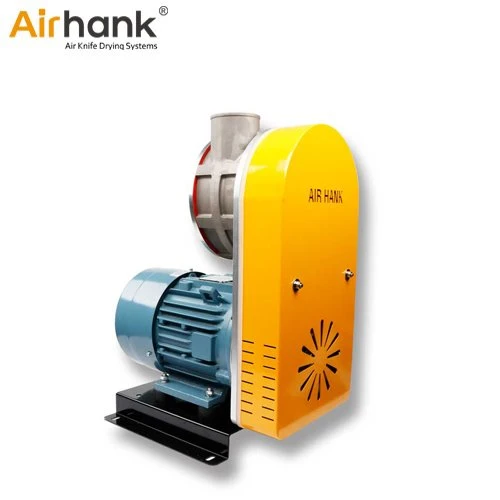

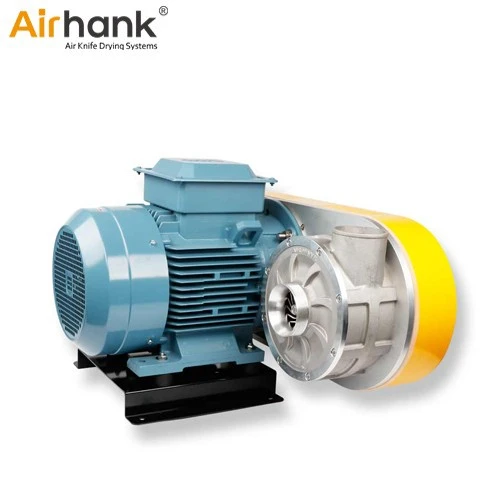

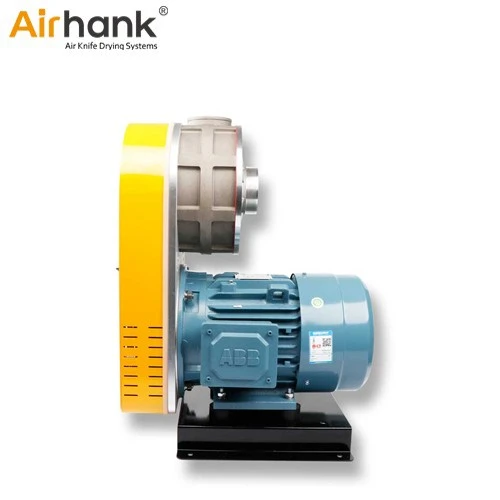

Single Pump High Speed Centrifugal Blower for Bottle Drying

Single Pump High Speed Centrifugal Blower for Bottle Drying

Belt driven high speed low energy consumption single stage
Patented blower

Send Inquiry

Features

With the development of industry, HANK high-speed centrifugal blower because of low energy consumption, large air volume, small body size and other superior performance gradually replace the compressed air dryer, side channel blower, to enhance the production efficiency, and greatly save the production cost.

HANK-150 15KW Blow-drying for LCD metal backsheets

Most of the imported backplane cleaning equipment is compressed air, air blower as a source of air blow-drying operations, alone the total power of the air source to reach more than 100KW, LCD metal backplane blow-drying effect is general, and the installation of an unreasonable filtration system, resulting in the product because of air pollution caused by the increase in the defective rate of the metal plate, the professional engineers by our accounting, After calculation by our professional engineers, by configuring 3 sets of 15kW high-speed blower and 10 sets of 800mm precision air knives, as well as high-precision filters, the blow-drying effect of the metal plates was significantly improved, and the cleanliness of the air source was also enhanced, which is a very meaningful thing for Hank.

Technical Parameter

Model	Motor	Power	Voltage	Max airflow	Frequeny	Pressure	Vacuum	inlet&out	Weight
Model	Motor	(KW)	(V)	(m³/h)	(Hz)	(mbar)	(mbar)	(mm)	KG
HANK70-5.5	IEC/NEMA	5.5(7.5HP)	380	1200	50	240	-220	102mm &76mm	91
HANK70-7.5	IEC/NEMA	7.5(10HP)	380	1470	50	260	-225	102mm &102mm	101
HANK-85-7.5	IEC/NEMA	7.5(10HP)	380	1700	50	180	-170	102mm &102mm	103
HANK100-11	IEC/NEMA	11(15HP)	380	1700	50	240	-220	102mm &102mm	140
HANK150-15	IEC/NEMA	15(20HP)	380	2100	50	240	-230	102mm &102mm	156
HANK150-18.5	IEC/NEMA	18.5(25HP)	380	2125	50	290	-270	102mm &102mm	185
HANK200-22	IEC/NEMA	22(30HP)	380	3400	50	240	-225	102mm &102mm	220

Ambient temperature -12℃-40℃

HANK centrifugal blower technical features

* 100% oil-free compression, clean and hygienic air
* Adopting NSK brand authorized bearings
* IP55 protection class, Class H insulation class (temperature resistance 155℃)
* 50Hz/60Hz wide frequency and wide pressure design.
* Pump body and impeller are made of high-strength ADC12 aluminum alloy die-casting..

HANK-150 18.5KW installation diagram

203

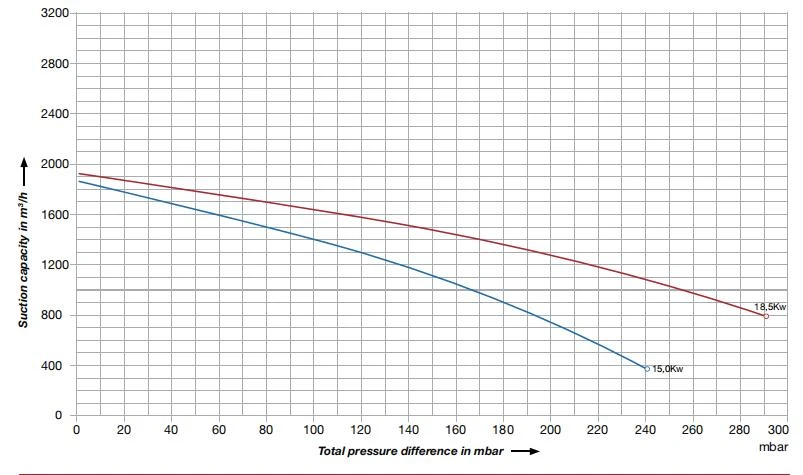

HANK-150 18.5KW performance curve

209

*Please confirm final installation demension with us due to product updates*

When using our blower, pls carefully check the installation space and conduct reasonable piping and wiring. for your convenience, Hank high speed centrifugal blower provide flexible air outlet location for your choose. Please indicate outlet location when ordering,below Hank drawing for reference.

202

HANK high speed centrifugal blower export packaging

112003

FAQ

Q: Are you trading company or manufacturer?

A: We are professional manufacturer specialized in side channel blower,high speed centrifugal blower and air knife drying system. The company has always insisted on the integration of development, mold manufacturing, die-casting, precision machining, assembly and automated paint spraying.

Q: Could you provide information about your certifications?

A: Our certifications include CE, RoHs, and ISO9001.

Q: What modes of payment do you accept?

A: We accept T/T, Western Union, PayPal, ensuring flexibility for our clients.

Q: Can you do OEM and ODM?

A: Yes, OEM and ODM are both acceptable.
