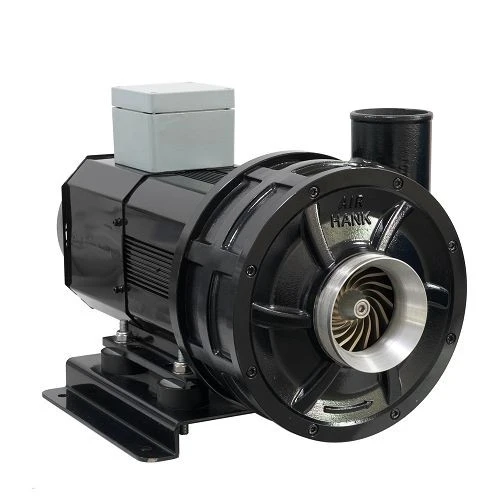

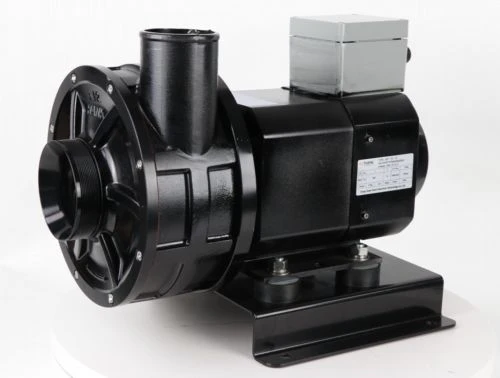

15HP 11KW Belt Free High Airflow High Speed Super Blower

15HP 11KW Belt Free High Airflow High Speed Super Blower

Name: China 15HP 11KW Belt Free High Airflow High Speed Super Blower Manufacturers Suppliers - Hank Electrical Technology
Brand: Airhank
SKU: 241993301

IE3 IE4 Permanent magnet high-efficiency motors
15years Factory direct supply
Frequency converter direct drive (0-3200Hz)
Airflow: 350-3000m³/h

Send Inquiry

Features

Power: 4.0-22KW

Airflow: 1620-3000m³/h

Pressure range: 180mbar-300mbar

Motor: IE3/IE4

DPT series permanent magnet synchronous direct-drive high speed blower adopts belt-free design,compared with traditional high-speed centrifugal blowers,which saves more than 30% of electricity costs and no belt replacement requried.

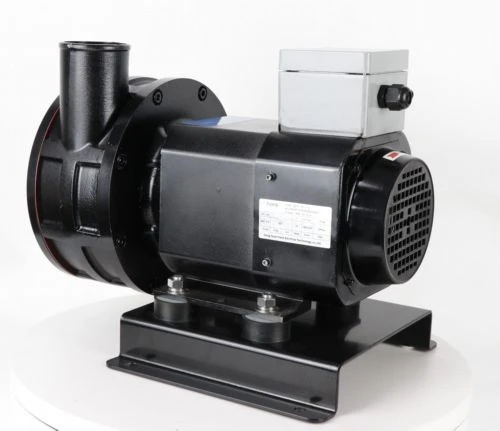

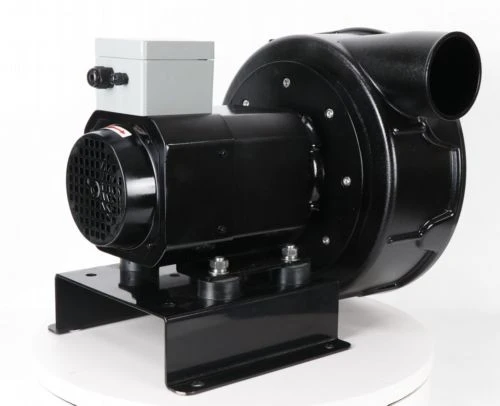

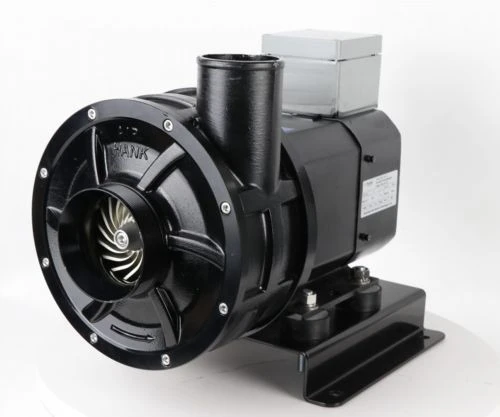

DPT belt-free high speed blower

Traditional belt-drive high speed centrifugal blower

Technical Parameter

Model	Power	Voltage	Frequency	Max airflow	Pressure	Current	inlet&out	Speed	Weight
	(KW)	(V)	(Hz)	(m³/h)	(mbar)	(A)	(mm)	rpm	KG
DPT-70	5.5kw (7.5HP)	380	0-560Hz	1620(m³/h)	200mbar	14.5	76mm(3'') &102mm(4'')	16800	33
DPT-85	7.5kw (10HP)	380	0-600Hz	1800(m³/h)	240mbar	16	76mm(3'') &102mm(4'')	18000	34
DPT-100	11kw (15hp)	380	0-600Hz	2400(m³/h)	260mbar	23	102mm(4') &135mm	18000	43
DPT-150	15kw (20hp)	380	0-600Hz	2500(m³/h)	260mbar	33.5	102mm(4') &135mm	18900	45
DPT-200	18.5kw (25hp)	380	0-650Hz	2650(m³/h)	280mbar	38.7	102mm(4') &135mm	19500	48
DPT-300	22kw (30hp)	380	0-700Hz	3000(m³/h)	300mbar	45	102mm(4') &135mm	21000	48

DPT-70 dimensions and installation drawing

DPT-70 Curve

(*each machine will be equipped with a synchronous high frequency converter (0-1000Hz) and a high-precision inlet filter 1000 mesh*)

Where are Airhank DPT series high speed blowers used?

Airhank DPT direct-coupled high speed turbine blowers are widely used in food packaging, PCB board cleaning, semiconductor cleaning coating, plastic cleaning, coating cleaning, strip steel degreasing, tire industry, electroplated surface treatment, aquaculture oxygenation aeration, glass cleaning and drying, ceramic bottle labeling, beverage filling and package drying.

1. DPT-100 high-speed turbo blower is a belt-free design, there is no need to consider replacing the belt after the machine has been used for a period of time. There is no maintenance cost and no impact on production.

2. Small footprint, 50% reduction in weight and volume compared to traditional high-speed turbo centrifugal blower..

3. The frequency range is 0-1000Hz to meet different application
