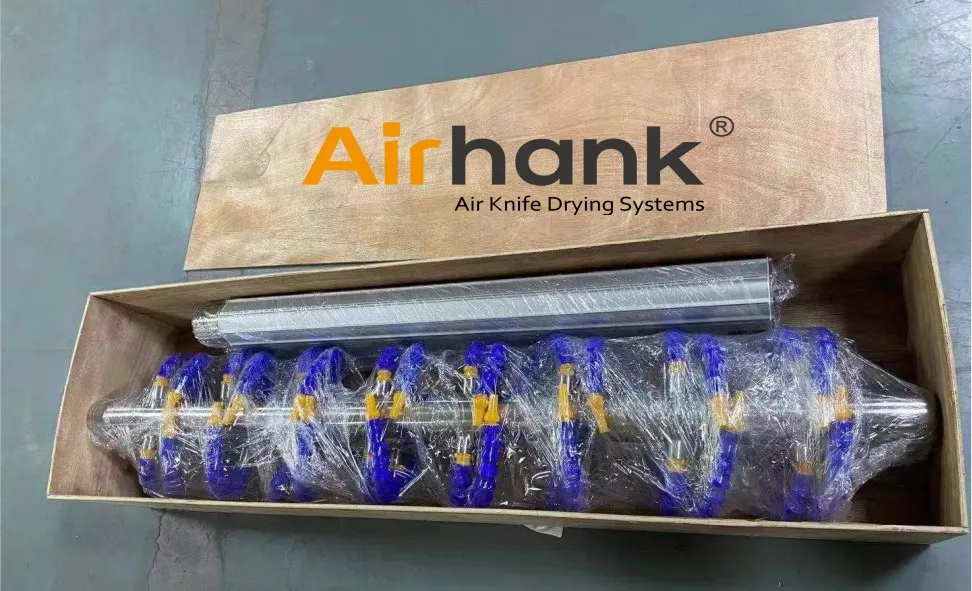

Flexible Nozzle Spider Arm Air Knife

Hank HKZ nozzle type air knife is the most effective 360°three-dimensional drying air knife. It consists of an air inlet, a circular main air duct, and a universal adjustable nozzle. It can be flexibly matched with a round nozzle or a flat nozzle. It is suitable for food bottles or cans. Blow-drying of hardware and other parts can satisfy the top, side, bottom and edge drying at the same time, and the nozzle can be anywhere in the bay area. Before the coding, labeling or packaging operations of beverages or wine bottles and other production dates, the nozzle-type air knife can completely dry the entire bottle body.



* HKZ nozzle-type air blades are suitable for food and beverage bottles, beer cans, hardware parts and other irregular surfaces such as edges, grooves, blind holes and other submerged water quickly blown away.

* Can be flexibly adjusted according to different product sizes

* Provides 360 degree drying, multi-angle blowing, effective blowing distance up to 500MM.

* SUS316 body material, POM adjustable nozzle, food-grade materials.

* Production line speed can be increased by more than 50%, production speed up to 500-800 bottles/can per minute.

* Equipped with HANK high-speed centrifugal turbine blower, RBG series side channel blower, high efficiency and low energy consumption.



HKZ-1600-S1-76-C37
model	Length(mm)	Air inlet number	Air inlet diameter(mm)	Number of nozzles
HKZ nozzle type stainless steel air knife	1600	S1 = 1pc air inlet	76	37



Main body: SUS304/316 stainless steel

Outlet adjustable range: Nozzle universally adjustable

Air distant: 500mm

Max length: 3000mm

Max air speed: 400m/s

Heat resisting: 100℃

Pressure resisting: 4kgf/cm2

Weight(every 100mm): 650G

Nozzle material: POM

Surface treatment: 8K mirror





SA type	Outlet length	Number of nozzle	Top nozzle	Two side nozzle	Nozzle length	Nozzle diameter	Inlet direction	Pressure and air flow required for various conditions
								Air speed 80-120m/s		Air speed 120-180m/s
	mm				mm	mm		kpa	m³/h	kpa	m³/h
HKZ-600-S1-51-C8	600	8	0	8	400	10	side	10.7	180	17.3	271
HKZ-800-S1-76-F12	800	12	0	12		2*25	side		172		259
HKZ-1000-S1-76-C18	1000	18	2	16		10	side		407		610
HKZ-1200-S1-76-F24	1200	24	2	22		2*25	side		346		518
HKZ-1400-S1-76-C29	1400	29	3	26		10	side		633		949
HKZ-1600-S1-76-F37	1600	37	3	34		2*25	side		518		778
HKZ-1800-S1-76-C42	1800	42	4	38		10	side		948		1423
HKZ-2000-S1-76-F48	2000	48	4	44		2*25	side		691		1037

(*others size pls contact with us for customized*)

(C: round nozzle / F: flat nozzle= C8: 8 round nozzle /F8: 8 flat nozzle)





HKZ nozzle air knife can also be called spider hand air knife, universal air knife, the main body is SUS304 or SUS316, the nozzle is made of POM material, which meets the food-grade standard, and can be safely used in the food industry to clean and dry, providing 360 degree drying without Dead angle, effective drying distance up to 500mm.
