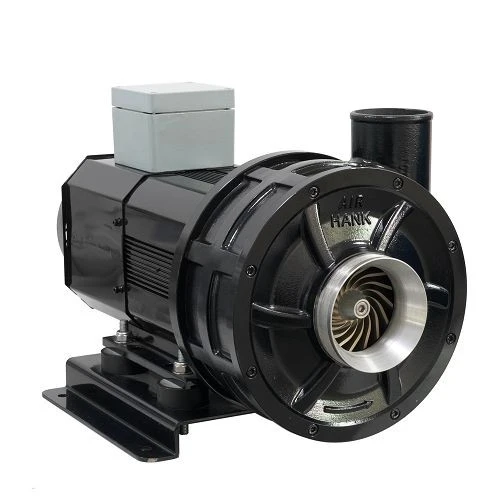

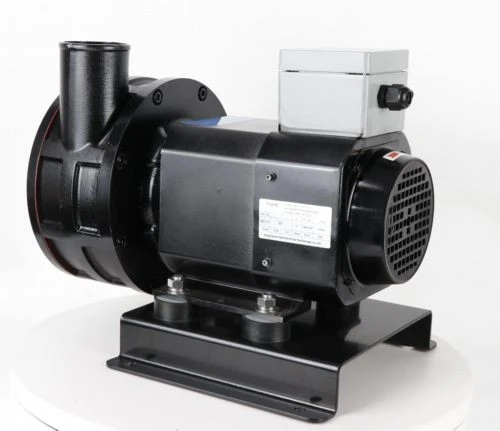

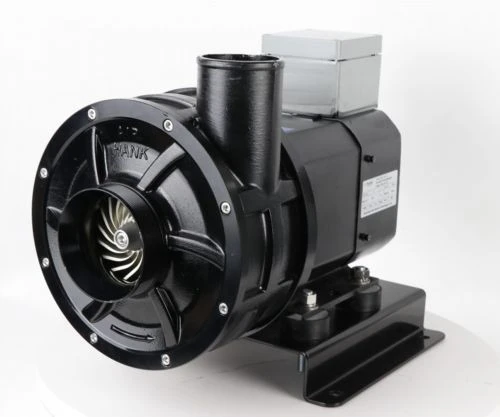

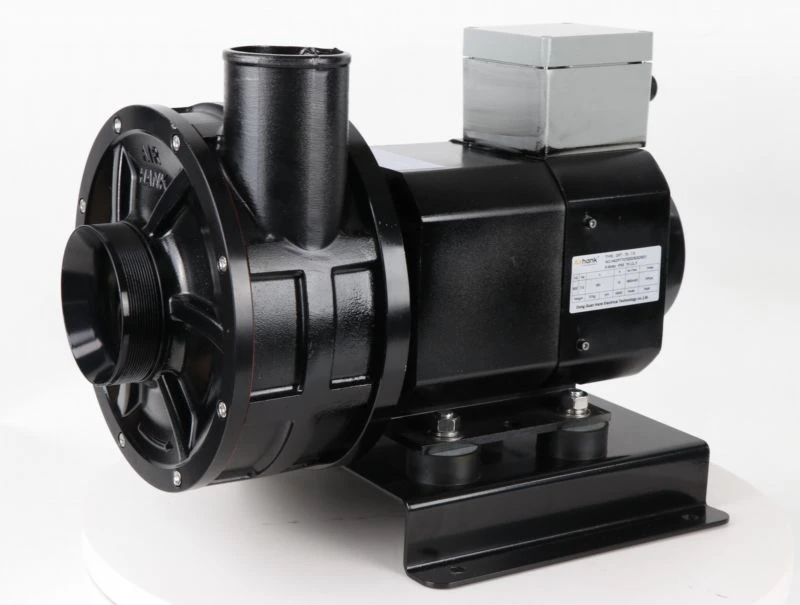

22KW Centrifugal Blower with Frequency Converter for Drying System



Power: 4.0-22KW

Airflow: 1620-3000m³/h

Pressure range: 180mbar-300mbar

Motor: IE3/IE4



Where is the DPT series permanent magnet synchronous high-speed motor applications?

DPT series high speed blower as a general equipment, widely used in the following industries equipment, Such as PCB cleaning,blowing water off of beverage aluminum cans,glass cleaning and drying, plastic, hardware cleaning and drying, auto-motive parts production drying, textile and paper drying, tire industry,steel coil drying ,pharmaceutical, semi-conductor, aquaculture oxygenation, plating surface treatment,food packaging and so on.





Model	Power	Voltage	Frequency	Max airflow	Pressure	Current	inlet&out	Speed	Weight
	(KW)	(V)	(Hz)	(m³/h)	(mbar)	(A)	(mm)	rpm	KG
DPT-70	5.5kw (7.5HP)	380	0-560Hz	1620(m³/h)	200mbar	14.5	76mm(3'') &102mm(4'')	16800	33
DPT-85	7.5kw (10HP)	380	0-600Hz	1800(m³/h)	240mbar	16	76mm(3'') &102mm(4'')	18000	34
DPT-100	11kw (15hp)	380	0-600Hz	2400(m³/h)	260mbar	23	102mm(4') &135mm	18000	43
DPT-150	15kw (20hp)	380	0-600Hz	2500(m³/h)	260mbar	33.5	102mm(4') &135mm	18900	45
DPT-200	18.5kw (25hp)	380	0-650Hz	2650(m³/h)	280mbar	38.7	102mm(4') &135mm	19500	48
DPT-300	22kw (30hp)	380	0-700Hz	3000(m³/h)	300mbar	45	102mm(4') &135mm	21000	48

DPT-200 18.5KW dimensions and installation drawing



DPT-200 18.5KW Curve



*each machine will be equipped with a frequency converter (0-3200Hz) and a high-precision inlet filter 1000 mesh*







DPT-200 installation dimension



DPT-200 frequency converter size



DPT-200 Silencing box size



1: DPT-200 high-speed turbine blower is a belt-free design, there is no need to consider replacing the belt after the machine has been used for a period of time. There is no maintenance cost and no impact on production.

With the brand frequency converter direct drive start, 0-3200Hz to meet different application,reduce the belt tensioning wheel and other wear parts, higher stability and longer service life.

3. Small footprint, 50% reduction in weight and volume compared to traditional high-speed turbine centrifugal blower..





--Export standard wooden box--
