Side Channel Blower

Your Professional Side Channel Blower Supplier

Dongguan Hank Electrical Technology Co.,Ltd is a high-tech factory mainly produce side channel blower, high speed centrifugal blower(with belt & without belt), vacuum pump, precision air knife.

Why Choose Us

01/

One-stop solution
We provide customers with one-stop customized solutions through R&D, production, sales and after-sales.

02/

Production Market
Europe (40%) Southeast Asia(20%), North America(15%), Domestic Market(15%).

03/

Our Certificate
CE / RoHs / ISO9001 / High-speed blower technology patent /air knife technology patent.

04/

Our service
Hank promise 18month free warranty, Compared with pre-sale, Hank pays more attention to after-sale service, our technical engineers are available 24 hours a day to solve the problems of your equipment

Side Channel Blower Specifications

Product name	Ultra High Pressure Side Channel Blowers
Model number	GHBG 5D5 36 2R5	Stage/Phase	Dual stage_3 phase
Frequency	50Hz	60Hz
Rated power	4kw	4.6kw
Rated voltage	345-415△(V)	380-480△(V)
Rated current	9.0△(A)	9.5△(A)
Max airflow	120m³/h	145m³/h
Max vacuum	-500mbar	-530mbar
Max pressure	820mbar	810mbar
Sound level	65db(A)	71db(A)

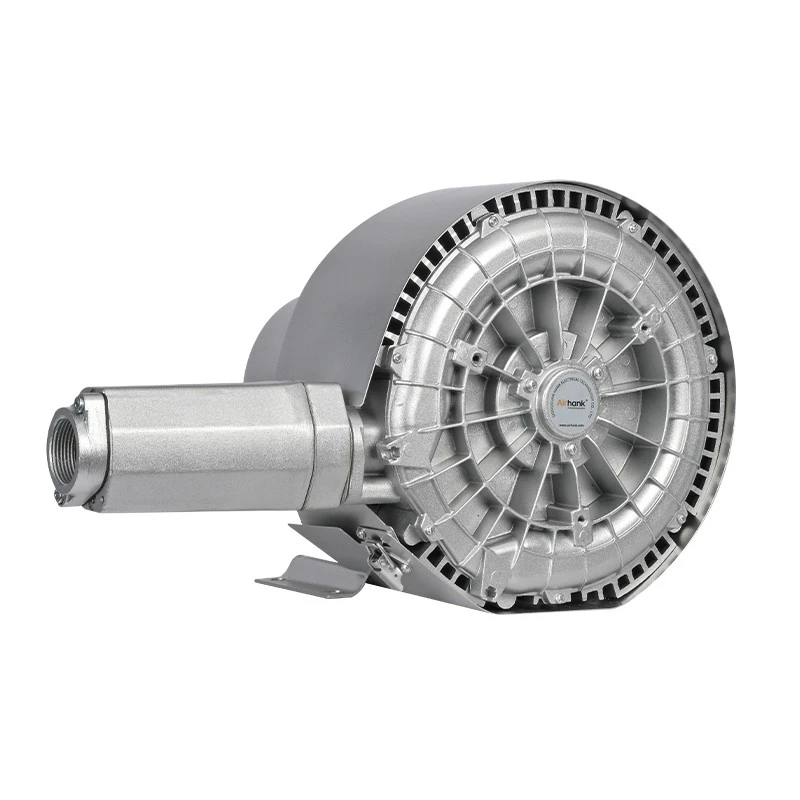

RBG320 1D3BHigh-Pressure Aeration Blower

Key Features

* Beautiful surface,Easy installation,Low noise level

* No vibration, and therefore complete dynamic stability

* Pulsation-free discharge,free maintenance

* Higher pressure ratio,100% oil free

* High temperature-resistant bearings with longer grease life

* Suitable for environmental protection

* Wide frequency motor with IP55,CALSS H

* Passed ISO,CE,CCC,UL ROHS test

* Air capacity: From 40m3/h to 2500m3/h

* Pressure: From 60mbar to 780mbar

Types of Side Channel Blowers Available

Single Stage Side Channel Blower

A single-stage side channel blower is one of the most common types, which is designed to handle lighter-duty applications.

Multi-Stage Side Channel Blower

The multi-stage side channel blower consists of numerous stages, each contributing to the overall pressure and flow rate.

Water-Cooled Side Channel Blowers

Water-cooled side channel blowers use a unique cooling system where a water jacket surrounds the impeller housing.

Food Grade Side Channel Blower

Food-grade side channel blowers are specifically designed to comply with food safety standards, ensuring their suitability for use in food processing and handling applications.

Applications

Cooling and Heating

Super Bagger blowers have the capacity to regulate the temperature of machines and systems by enhancing heat transfer via evaporative cooling.

Degassing

Bagger channel side blowers degas fluids by removing trapped air. When the trapped air is removed from the fluids, the quality of the fluids improves.

Vacuum Cleaning

The air suction power of the vacuum side channel blower makes it perfect for carrying out industrial cleaning.

Drying

Side channel blowers enhance the evaporation of liquids through the process of increasing the heat transfer.

Packaging & Shipping

Side Channel Blower Package	To be packed with carton box To be packed with wooden case
Shipping methods	By express, such as DHL, UPS, TNT etc By air cargo port to port By sea port to port

FAQ

Q: How to select a correct model of ring blower?

A: Please check and advise the max airflow and max pressure of ring blower you need.

Q: What is the material of your machine , is oil free?

A: Our blower is aluminum alloy, motor is 100% copper coil . Yes,we are oil free.

Q: How to operate your machine?

A: Connect with wire, and turn on the power, so you can use it directly, about the wiring method, we will tell you how to do according to your voltage, so at first , you need to tell us your voltage and phase,its important.

Q: You are trading company or manufacture?

A: We have our own factory and international department. We produce and sell all by ourselves.

Q: How to guarantee the quality and after sales service of your goods?

A: 1).Strict detection during production.
2).Strict inspection on each product before shipment and intact product packaging are insured.
3).Follow up and adopt customers feedbacks in a timely manner after sales.

As one of the leading side channel blower manufacturers and suppliers in China, we warmly welcome you to wholesale side channel blower made in China here from our factory. All our products are with high quality and competitive price.
