Aluminum Alloy Air Knife Air Blade

EA Standard Compressed Air Knife Aluminum Alloy High Pressure Air Knife Dust and Water
Cooling Air Knife Air Flow Drying Equipmentlength: 100mm-3000mm
Air outlet size: 0.3-3.0mm( non-adjustable)
heat-resistant temperature: 250℃

Send Inquiry

Features

EA standard air knife has a round air inlet, wide and straight air duct, gradual narrow air duct, air knife knife mouth width can be customized width, adjustable air speed, adjustable air flow, adjustable wind pressure, with wind resistance is small, the characteristics of pressure loss is small, especially suitable for ultrasonic cleaning, glass cleaning machine, circuit boards, coating, coating, non-ferrous metal panels, blowing dust, hot and cold air barrier-free isolation, pharmaceuticals, rapid heating, defrosting and high-temperature sterilization. Electrostatic dust removal.

313

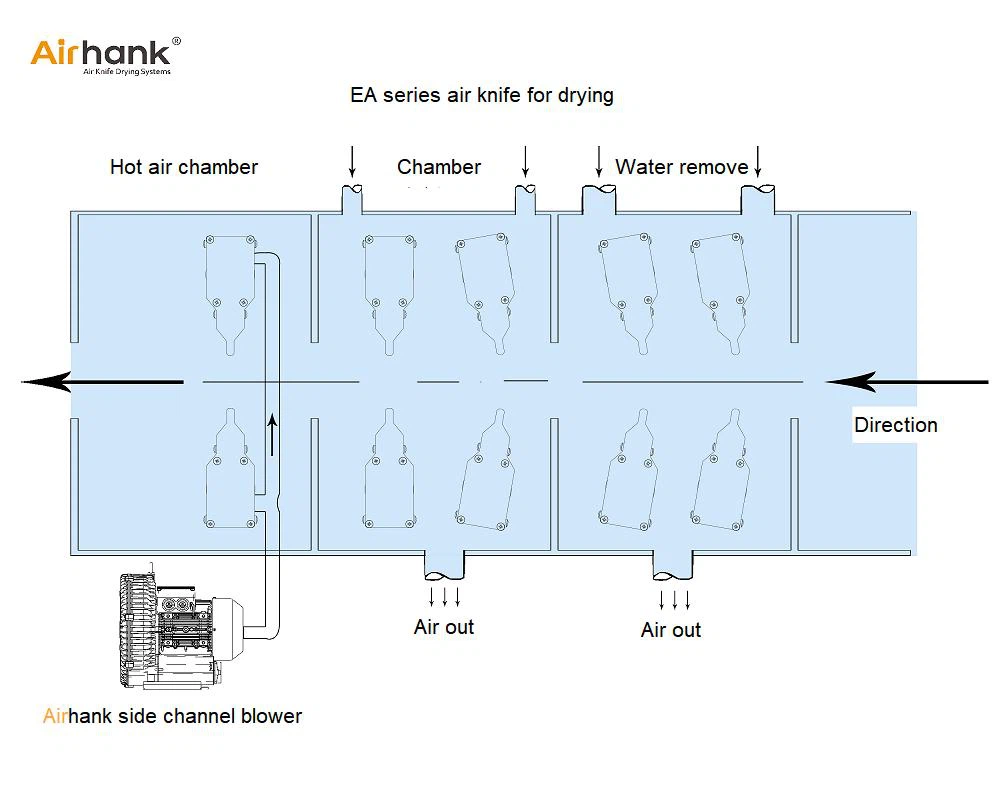

HANK EA standard air knife working structure diagram

314

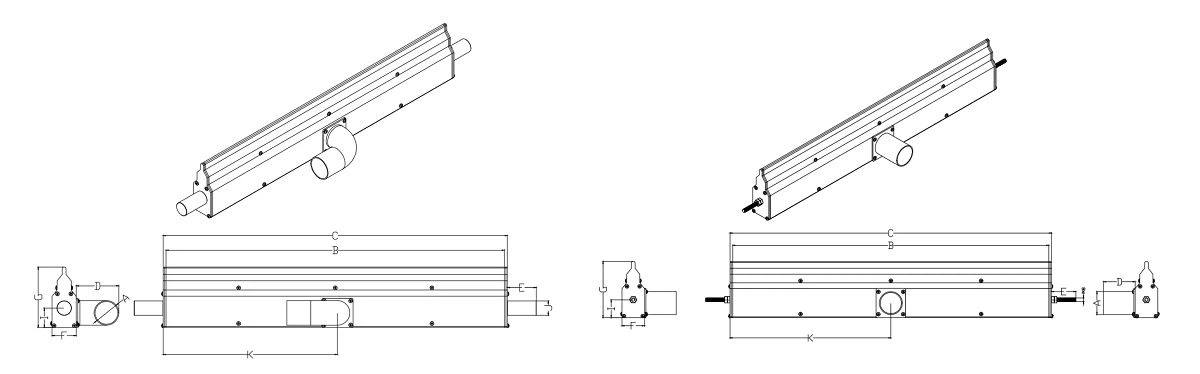

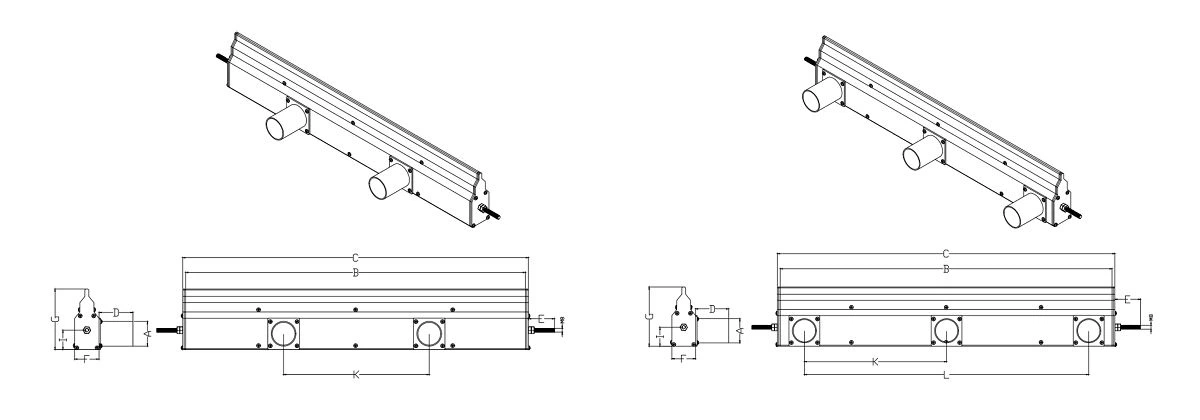

EA series installation demension

315001

316001

317001

	A	B	C	D	E	F	G	I	J	K	L	Outlet width
EA-S1	51	100-3000mm	B+10	70	M8*40	50	125	40	customized	C1/2	custmozied	0.3-3.0mm
EA-S2	51	100-3000mm	B+10	70	/	50	125	40
EA-Z1	51	100-3000mm	B+10	70	M8*40	50	125	40
EA-Z2	51	100-3000mm	B+10	70	M8*40	50	125	40
EA-Z3	51	100-3000mm	B+10	70	M8*40	50	125	40		/
EA-ZW1	51	100-3000mm	B+10	70	/	50	125	40		C1/2

What is the purpose of a air knife?

Hank air knife using international advanced technology, with high-speed wind flow on the surface of the product water film, residual liquid atomization blow-drying, can also be used for drying after the paste, Hank air knife system is different from the traditional electric heating type dryer, no heating, pure low temperature operation, low energy consumption, high wind volume, blow-drying thorough drying effect is good, the small amount of residual water film on the surface of the bottle by the wind blow-drying, at the same time, and with a temperature of 40 degrees or so, it is easy to Paste, ready for sticking not stickers, due to the Hank wind knife system is not only low energy consumption, but also better to achieve the customer's use of the effect, constantly favored by the food machinery factory!

EA Series
model	Length(mm)	Air inlet number	Air inlet diameter(mm)
EA series	100-3000	S1 = 1pc air inlet	51

EA series model table

EA type	Outlet length	Outlet width	Withstand	Heat resistant	Inlet direction	Number of inlet	Pressure and air flow required for various conditions
EA type	Outlet length	Outlet width	Withstand	Heat resistant	Inlet direction	Number of inlet	Air speed 60-80m/s		Air speed 80-120m/s		Air speed 120-180m/s
	mm	mm	mpa	℃		1	kpa	m³/h	kpa	m³/h	kpa	m³/h
EA-200-S1-51	200	1.0	0.2	250	side	1	10.3	43	17.3	58	38	86
EA-400-S1-51	400				side	1		86		116		172
EA-500-S1-51	500				side	1		107		145		215
EA-600-S1-51	600				side	1		129		174		258
EA-700-S1-51	700				side	1		150		203		316
EA-800-S1-51	800				side	1		172		232		374
EA-900-S1-51	900				side	1		193		261		432
EA-1000-S1-51	1000				side	1		215		290		490
EA-1200-S1-51	1200				side	1		258		348		576
EA-1600-S1-51	1600				Double side	2		344		464		748
EA-2000-S1-51	2000				Double side	2		430		580		920
EA-3000-S1-51	3000				Double side	2		645		870		1350

(*others size pls contact with us for customized*)

	A	B	C	D	E	F	G	I	J	K	L	Outlet width
EA-S1	51	100-3000mm	B+10	70	M8*40	50	125	40	customized	C1/2	custmozied	0.3-3.0mm
EA-S2	51	100-3000mm	B+10	70	/	50	125	40
EA-Z1	51	100-3000mm	B+10	70	M8*40	50	125	40
EA-Z2	51	100-3000mm	B+10	70	M8*40	50	125	40
EA-Z3	51	100-3000mm	B+10	70	M8*40	50	125	40		/
EA-ZW1	51	100-3000mm	B+10	70	/	50	125	40		C1/2

EA series package

All of HANK's air knives are exported in fumigation-free wooden crates, and the strong packaging ensures that every one of our customers receives an undamaged air knife.
